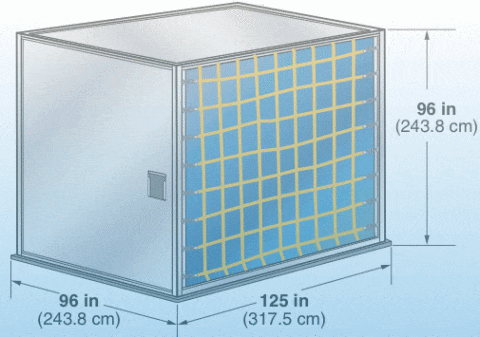

ULD Container Type: M-1 AMA rectangular container on P6P base
M-1 AMA rectangular container on P6P base
IATA ULD code:
AMA rectangular container on P6P base
Prefixes:
AMF, AMG, AMK, AMP, AQA, AQD, and AQ6
Rate class:
Type 2
Description:
Main-deck container. Door is canvas with built-in net door straps.
Suitable for:
747F, 747 Combi, 777F center loading only
Maximum gross weight:
6,804 cm (15,000 lb).
Tare weight:
350 kg (772 lb),
AS1825 volume:
17.6 m
3
(623 ft
3
)

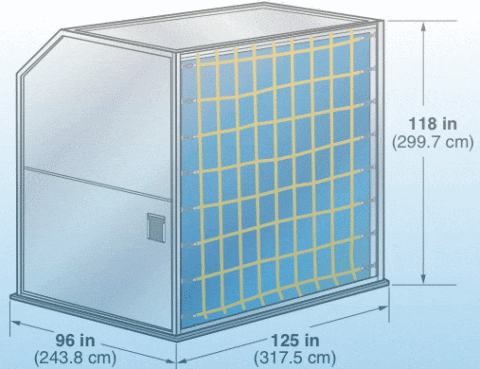

ULD Container Type: M1H - AMD contoured
M1H - AMD contoured
IATA ULD code:
AMD contoured
Prefixes:
AQD, AMD
Rate class:
Type 2H
Description:
Main-deck upper contoured container. Door is canvas with built-in net door straps.
Suitable for:
747F, 747 Combi777F center loading only
Maximum gross weight:
6,800 kg (14,491 lb)
AS1825 volume:
21.2 m
3
(750 ft
3
)

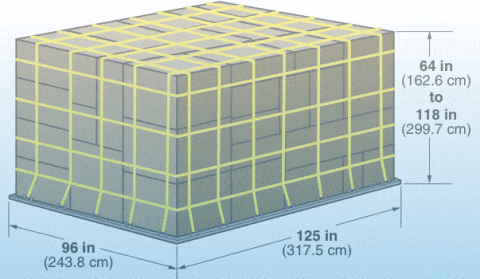

ULD Container Type: PMC/P6P 10-ft flat pallet with net
PMC/P6P 10-ft flat pallet with net
IATA ULD code:
P6P 10-ft flat pallet with net
Rate class:
Type 2BG
Description:
Universal general-purpose flat pallet for lower holds and main decks.
Suitable for:
747, 767, 777, 787, DC-10, MD-11
Tare weight:
120 kg (265 lb)
AS1825 volume:
H 162.6 cm H 243.8 cm H 299.7 cm H 162.2 cm H 243.8 cm H 299.7 cm
Boeing volume:
(64 in), 11.5 m
3
(407 ft
3
) (96 in), 17.0 m
3
(600 ft
3
) (118 in), 21.2 m
3
(750 ft
3
) (64 in), 11.7 m
3
(415 ft
3
) (96 in), 17.0 m
3
(600 ft
3
) (118 in), 21.2 m
3
(750 ft
3
)

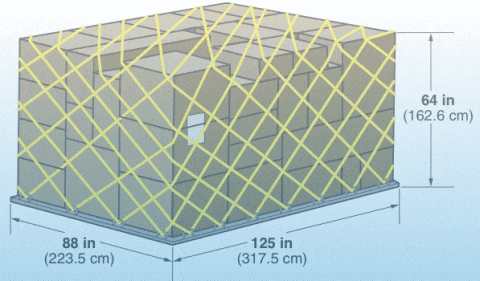

ULD Container Type: LD-7 P1P flat pallet with net
LD-7 P1P flat pallet with net
IATA ULD code:
P1P flat pallet with net
Prefixes:
PAA, PAG, PAJ, PAP, PAX, P1A, P1C, P1D, and P1G
Rate class:
Type 5
Description:
Universal general-purpose flat pallet for lower holds and main decks.
Suitable for:
Widebody:
All aircraft lower holds and main decks
Standard-body:
707F, 727F, 737F, 757F, DC8F, DC9F main decks
Maximum gross weight:
4,626 kg (10,198 lb)
Tare weight:
105 kg (231 lb)
AS1825 volume:
10.5 m
3
(370 ft
3
)
Boeing volume:
10.7 m
3
(379 ft
3
)

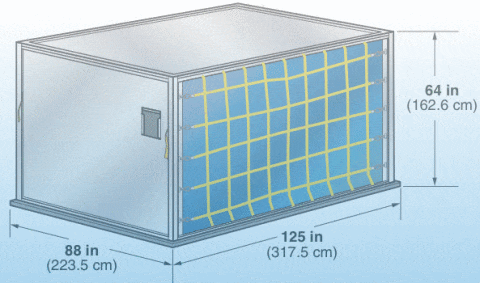

ULD Container Type: LD-9 AAP enclosed pallet on P1P base
LD-9 AAP enclosed pallet on P1P base
IATA ULD code:
AAP enclosed pallet on P1P base
Rate class:
Type 5
Description:
General-purpose enclosed container fitted to P1P base. Door is canvas with built-in net door straps, or solid.
Suitable for:
747, 767, 777, 787, DC-10, MD-11 lower hold
Door opening:
118 x 58 in (300 x 147-cm)
Maximum gross weight:
Lower hold, 4,624 kg (10,194 lb); main deck, 6,000 kg (13,227 lb)
Tare weight:
Canvas door, 215 kg (473 lb); solid door, 270 kg (595 lb)
AS1825 volume:
10.8 m
3
(381 ft
3
)
Boeing volume:
10.8 m
3
(381 ft
3
)

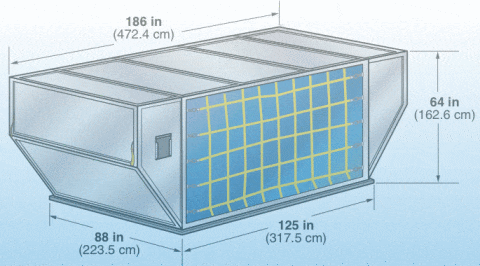

ULD Container Type: LD-29 AAU contoured container on P1P base
LD-29 AAU contoured container on P1P base
IATA ULD code:
AAU contoured container on P1P base
Rate class:
Type 5
Description:
Full-width lower hold container angled at both ends. Door is canvas with built-in net door straps.
Suitable for:
747 lower hold Door opening: 118 x 60-in (300 x 152-cm).
Maximum gross weight:
6,033 kg (13,300 lb)
Tare weight:
265 kg (584 lb)
AS1825 volume:
14.4 m
3
(510 ft
3
)

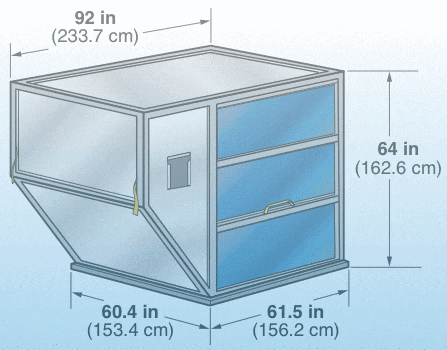

ULD Container Type: LD-8 DQF
LD-8 DQF
IATA ULD code:
DQF
Prefixes:
ALE, ALN, DLE, DLF, DQP, and MQP
Rate class:
Type 6A
Description:
Full-width lower hold container angled at both ends. Door is canvas with built-in door straps.
Suitable for:
767, 787 lower hold
Door opening:
92 x 62-in (234 x 157-cm)
Maximum gross weight:
2,450 kg (5,401 lb)
Tare weight:
127 kg (280 lb)
AS1825 volume:
7.1 m
3
(252 ft
3
)
Boeing volume:
6.9 m
3
(245 ft
3
)

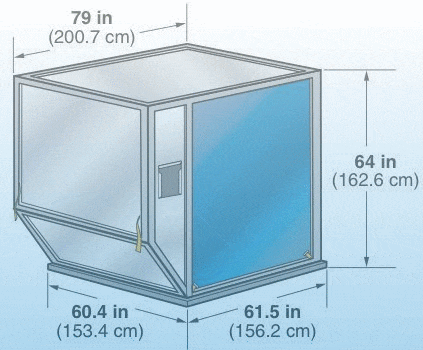

ULD Container Type: LD-3 AKE contoured container
LD-3 AKE contoured container
IATA ULD code:
AKE contoured container
Prefixes:
AKE, AVA, AVB, AVC, AVK, DVA, DVE, DVP, XKS, XKG, and forkable AKN, AVN, DKN, DVN, and XKN
Rate class:
Type 8
Description:
Half-width lower deck container with one angled side. Door is either canvas or solid.
Door opening:
58 x 61 in (147 x 155 cm)
Maximum gross weight:
3,500 lb (1,588 cm)
Tare weight:
181 lb (82 kg)
AS1825 volume:
159 ft
3
(4.5 m
3
)
ULD Container Type: LD-1 AKC contoured container
LD-1 AKC contoured container
IATA ULD code:
AKC contoured container
Prefixes:
AVC, AVD, AVK, AVJ, and forkable AVY
Rate class:
Type 8
Description:
Half-width lower hold container with one angled side. Door is either canvas or solid.
Loadability:
747, 767, 777, 787, MD-11 lower hold
Door opening:
147 x 155 cm (58 x 61 in)
Maximum gross weight:
1,588 kg (3,501 lb)
Tare weight:
70 to 170 kg (155 to 375 lb)
AS1825 volume:
5.0 m
3
(175 ft
3
)
